Positive Displacement Liquid Filler

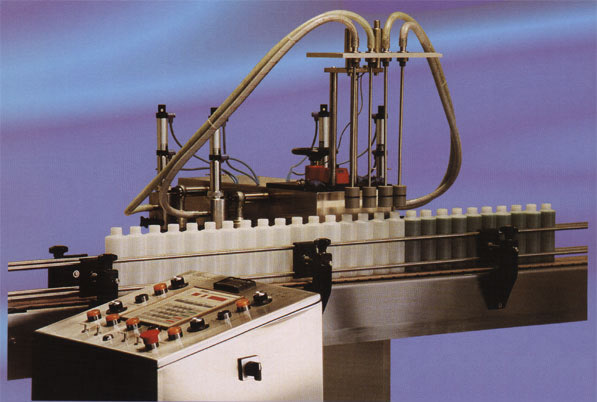

Four Head Positive Displacement Liquid Filler

Features – 4 Head Positive Displacement Liquid Filler

  • Rigid body construction from Stainless Steel.
  • Electrically driven by powerful 1.2kw motor.
  • Comes Complete with 2400mm conveyor belt.

Capacity

Up to 1 Litre per head fill capacity (optional up to 2 litres per head, depending on product).

Specifications - 4 Head Positive Displacement Liquid Filler

  • All Parts in contact with product are machined from high quality 316
    Stainless Steel.
  • High flow positive shut-off spool valve.
  • Easy dismantling and assembling without the use of tools.
  • Chainless gearbox drive.
  • Easy to program user friendly control unit.
  • Fine tuning while machine is in motion.
  • Volume adjustment on each individual head while the machine is still in motion.
  • Can be interfaced with check weigher for automatic weigh control.
  • Separate console for better positioning and operator comfort.
  • Numerous programs can be stored in control unit.

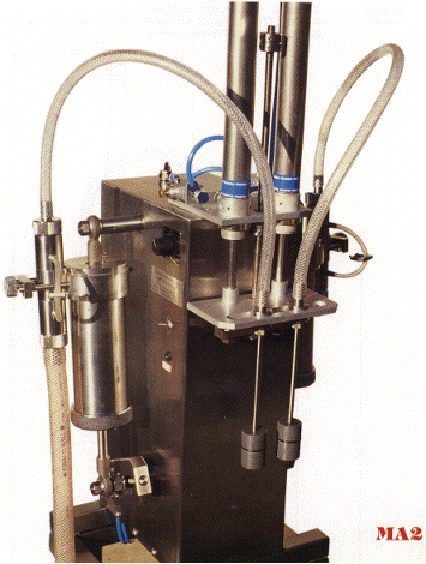

Automatic Two Head Liquid Filler

Liquid filler Capacity

50ml to 2 litres per head

Features

  • Compact design – Two cylinders mounted vertically either side of the
    machine cabinet.
  • Positive Displacement – Pistons driven by cranks connected to direct drive gearbox – Electric motor, variable speed, 2 H.P.
  • Positive Shut-off Spool Valves suitable for suction lift or gravity supply of
    product to be filled.
  • Bottom-up fill nozzle assembly easily adjusted by hand wheel.
  • Large range of nozzles – including positive shut-off nozzles.
  • All valves, cylinders & pistons come apart for easy cleaning.
  • Available with conveyor, capping, labelling and accumulation table.

Liquid filler Specifications

  • Wetted parts all manufactured from 316 grade stainless steel.
  • Easy clean flush front bottom-up fill and machine cabinet.
  • Product inlet manifolds available – Including tri-clover clamp connectors.
  • Programmable Logic Controller (PLC) Standard – Technically advanced
    electronic camshaft controller available as an option.
  • Pneumatic automatic gating and Photo-Cell – “No Container – No Fill”.
  • Bottom-up fill adjustable from conveyor level to 300mm high.
  • Nozzle descent error activates safety switch – Minimizes spillage.
  • Machine mounted on screw levelling jacks or with lockable castors.
  • Filling capacities range form 15 units to 40 units per minute depending upon size of containers and characteristics of products.
  • Filling accuracy ± 0.5%.
