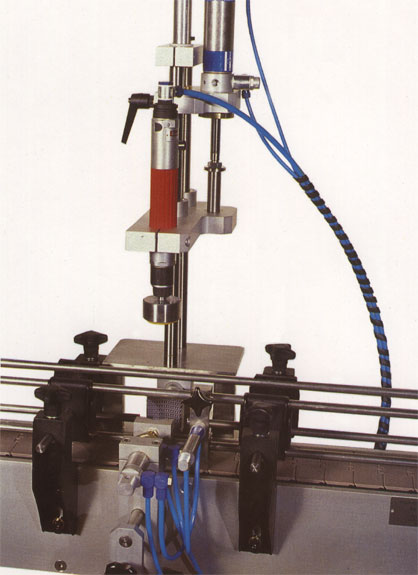

Fully Automatic High-Speed Cap Tightener

Features

  • Automatically tightens caps that have been placed on the container manually by an operator.
  • ┬áSimple hand adjusted torque control for setting correct tensions for various caps.
  • Easy change over of container clamps where additional clamps are required for a wide range of containers.
  • Chuck sizes for a wide range of caps.
  • Supplied with variable speed drive conveyor or installed on customers
    conveyor.

Specifications

  • Tightens caps automatically up to 60 caps per minute.
  • Cap sizes range from 20mm to 100mm diameter.
  • Height adjustable by handwheel for containers from 50mm to 300mm high.
  • Robust Stainless Steel and Anodised Aluminium Construction – Quality Components.
  • PLC and Pneumatic Controls – User friendly control panel – Emergency Stop.
  • For Flame-proof applications – all pneumatic controls.
  • Automatic pneumatic gating – Photocell or pneumatic switch.
